Tutorial 3: Data Visualization (Matplotlib)

Goal¶

So far, we’ve learned how to organize and analyze data using NumPy and Pandas.

In this notebook, we’ll learn how to visualize our data using Matplotlib, one of the most widely used plotting libraries in Python.

By the end of this notebook, you should be able to:

• understand which type of plot is appropriate for different types of data,

• create common plots such as histograms, bar plots, scatter plots, line plots, and heatmaps,

• understand the common structure shared by most Matplotlib figures,

• customize figures with titles, axis labels, tick labels, legends, and color bars,

• and interpret basic visualizations commonly encountered in neuroscience.

Before we begin, let’s import the packages we’ll be using.

If you haven’t installed Matplotlib yet, refer back to the previous tutorials on how to install Python packages using conda install or pip install and/or read the package’s offical documentation for installing their packages.

Getting Started¶

Most Matplotlib figures follow the same general pattern:

1. Choose a plot type.

2. Add axis labels.

3. Add a title.

4. Display the figure.

In other words, many figures look something like:

plt.<plot_type>(...)

plt.xlabel(...)
plt.ylabel(...)
plt.title(...)

plt.show()

As we work through this notebook, notice that the overall structure stays almost exactly the same. Usually, only the first line changes.

Similar to our previous tutorial, let’s use similar participant data from the previous notebook.

Histogram¶

Suppose you’ve just received data from a neuroscience study containing participants of different ages.

One of the first questions you might ask is:

How are the participant ages distributed?

A histogram helps answer this question by showing how many observations fall within different ranges of values.

Histograms are commonly used to visualize the distribution of continuous variables (numerical measurements that can take many possible values), such as:

• age,

• brain volume,

• reaction time,

• cortical thickness,

• or any other numerical measurement.

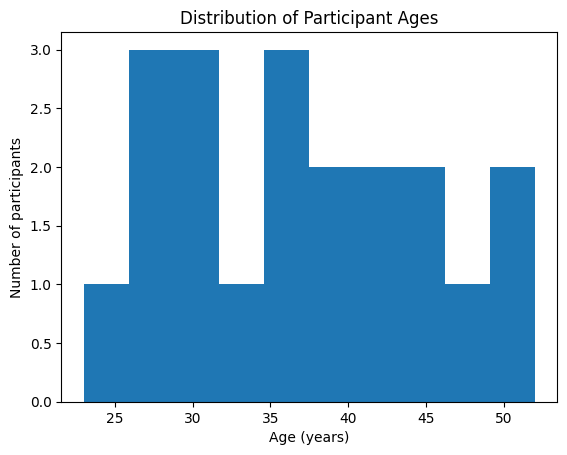

Let’s see an example code plotting a histogram.

Let’s break down the code.

plt is short for matplotlib, which is similar to how we called numpy methods as np.methods() in our previous tutorial.

plt.hist(participant_data["age"])

creates the histogram (plt.hist) using the age column.

plt.xlabel(...)

adds a label to the x-axis.

plt.ylabel(...)

adds a label to the y-axis.

plt.title(...)

adds a descriptive title.

Finally,

plt.show()

displays the completed figure.

Notice that most Matplotlib plots follow this same structure.

Try it yourself¶

Create a histogram of:

• left_hippocampal_volume

• right_hippocampal_volume

Then:

• change the title,

• change the x-axis label,

• change the y-axis label.

Bar Plot¶

Sometimes we’re interested in categories rather than continuous numerical values.

For example, suppose we want to know:

How many participants belong to each drug-use category?

Unlike a histogram, which groups numerical values into ranges, a bar plot compares the counts of different categories.

Before creating the plot, let’s first count how many participants belong to each category. Here, we can use a pandas method called pd.value_counts().

The value_counts() function counts how many times each category appears in the column.

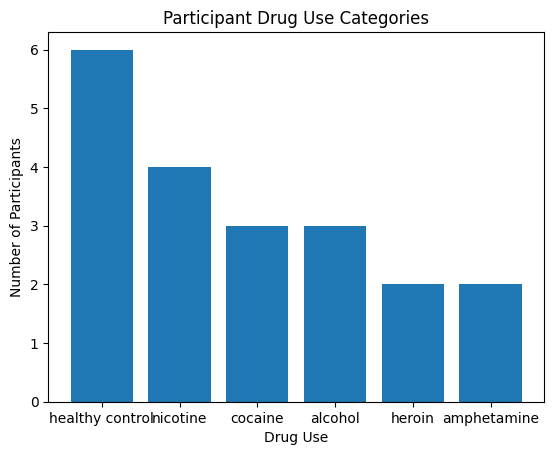

We can now visualize these counts using a bar plot.

Again, notice that the plotting structure is almost identical to the histogram.

Only the first line has changed:

plt.bar(...)

Everything else—axis labels, title, and plt.show()—remains the same.

Let’s break down the first line:

plt.bar(drug_counts.index, drug_counts.values)

A bar plot needs two pieces of information:

• the labels to display on the x-axis,

• and the height of each bar (the y-values).

In this example:

drug_counts

might look something like:

healthy control    6
nicotine           4
cocaine            3
alcohol            3
amphetamine        2
heroin             2

Here:

• the index contains the category names:

  • "healthy control"

  • "nicotine"

  • "cocaine"

  • ...

• the values contain the corresponding counts:

  • 6

  • 4

  • 3

  • ...

So:

drug_counts.index

returns:

Index([
    'healthy control',
    'nicotine',
    'cocaine',
    'alcohol',
    'amphetamine',
    'heroin'
])

while

drug_counts.values

returns:

array([6, 4, 3, 3, 2, 2])

Putting them together:

plt.bar(drug_counts.index, drug_counts.values)

tells Matplotlib:

“Create a bar for each drug-use category, where the height of the bar equals the number of participants in that category.”

The remaining lines customize the figure:

plt.xlabel("Drug Use")

adds a label to the x-axis.

plt.ylabel("Number of Participants")

adds a label to the y-axis.

plt.title("Participant Drug Use Categories")

adds a title above the figure.

Finally,

plt.show()

displays the completed figure.

Leveraging GenAI for Data Visualization¶

Let’s look at our bar plot again. Notice how the figure does NOT look great?

As you begin creating figures, you’ll often want to make small improvements—for example:

• rotate overlapping axis labels,

• increase the figure size,

• change the font size,

• add a legend,

• adjust colors,

• or improve the overall appearance.

Generative AI tools such as ChatGPT can be very helpful for these kinds of tasks.

Oftentimes, an effective way to use GenAI is to ask specific questions rather than requesting an entirely new figure. This allows it to give concise code that does exactly what you need.

For example, suppose you create the bar plot above and notice that the x-axis labels overlap.

Instead of asking:

“Make me a better plot.”

try asking:

“I’m using Matplotlib. My x-axis labels overlap in this bar plot. How can I rotate the labels or increase the figure size? Here’s my code:”

and then paste your code.

Because you now understand the basic structure of a Matplotlib figure:

plt.<plot_type>(...)

plt.xlabel(...)
plt.ylabel(...)
plt.title(...)

plt.show()

you can ask much more targeted questions and better understand the suggested solutions.

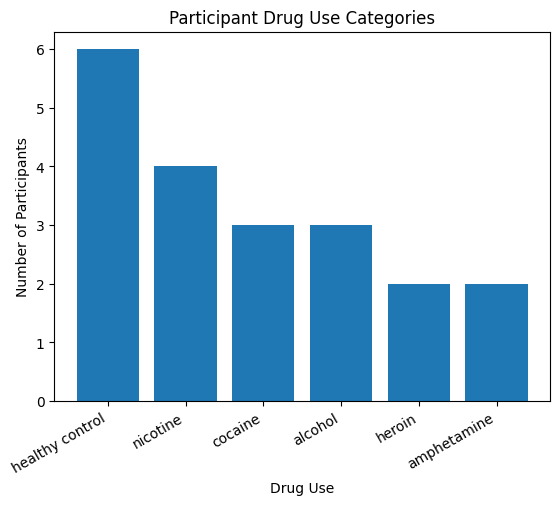

For instance, in this case, it will likely suggest you to add plt.xticks() to rotate the text.

Much better!

In general, try to:

• explain what you’re trying to achieve,

• describe the specific issue,

• include the relevant code,

• and, if possible, include a screenshot of the figure.

Don’t worry if you don’t know the correct technical terms. For example, you might not know that the text below the bars is called the x-axis labels. That’s perfectly fine. You can simply describe what you’re seeing (or share a screenshot), and GenAI can often help identify the terminology before suggesting a solution. Though, try learning the terminology as you go along as it may help you leverage GenAI for more complex problems!

The more context you provide, the more useful the suggestions are likely to be.

Also notice how learning the basics of Matplotlib makes GenAI much more useful. For example, if GenAI suggests adding:

plt.xticks(rotation=30, ha="right")

you’ll hopefully recognize that it belongs alongside the other plotting commands (such as plt.xlabel(), plt.ylabel(), and plt.title()) and understand that it’s modifying the appearance of the figure rather than creating a completely new plot. Understanding the overall structure of your code makes it much easier to interpret and adapt the suggestions that GenAI provides.

Remember that GenAI works best as a programming assistant, not as a replacement for understanding the code yourself. Having a solid grasp of the basics makes it much easier to understand the suggestions you receive and decide whether they are appropriate for your problem.

Scatter Plot¶

Suppose we’re interested in how the brain changes with age.

One possible research question is:

Do older participants tend to have smaller hippocampal volumes?

To begin answering this question, we first need to visualize the relationship between two continuous variables:

• Age

• Left hippocampal volume

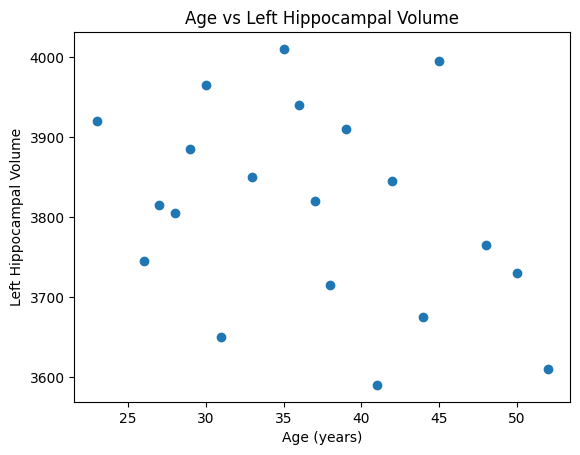

A scatter plot is designed for this purpose.

Unlike a histogram (which visualizes the distribution of one variable) or a bar plot (which compares categories), a scatter plot shows the relationship between two numerical variables.

Each point represents one participant.

• The x-coordinate corresponds to one variable (Age).

• The y-coordinate corresponds to another variable (Left Hippocampal Volume).

If a relationship exists, we may begin to see a pattern in how the points are distributed. Let’s use plt.scatter to generate our scatter plot

Let’s break down the first line:

plt.scatter(
    participant_data["age"],
    participant_data["left_hippocampal_volume"]
)

A scatter plot requires two variables:

• the first variable becomes the x-axis,

• the second variable becomes the y-axis.

Here:

• participant_data["age"] determines the horizontal position of each point.

• participant_data["left_hippocampal_volume"] determines the vertical position.

Since both columns contain one value for every participant, Matplotlib pairs them together automatically. For example:

becomes three points on the figure.

As before, the remaining lines simply add axis labels, a title, and display the completed figure.

Try it yourself¶

Create a scatter plot using:

• age vs right_hippocampal_volume

• left_hippocampal_volume vs right_hippocampal_volume

Then:

• change the title,

• change the axis labels,

• make the figure larger using plt.figure(figsize=(...)).

Looking Ahead¶

Although a scatter plot helps us visualize a relationship, it does not tell us how strong that relationship is or whether it is statistically meaningful.

For macroscale connectomics (human neuroimaging), we’ll learn how to answer questions such as:

• Is there a significant relationship between behavioral data (such as age) and brain data?

• How strong is the relationship?

• Can we fit a line that summarizes the trend?

• Can we adjust for other variables such as sex or education?

To answer these questions, we’ll introduce concepts such as:

• correlation,

• linear regression,

• and multiple linear regression.

For now, the scatter plot gives us an important first step: it lets us explore our data visually before applying statistical models.

Line Plot¶

Suppose we’ve extracted the resting-state fMRI signal from a single brain region.

Rather than asking how values are distributed (histogram) or whether two variables are related (scatter plot), we now want to ask:

How does the signal change over time?

A line plot is designed for visualizing measurements that are collected sequentially, such as:

• brain activity over time,

• heart rate over time,

• EEG recordings,

• or any other time series.

In a line plot, neighboring measurements are connected with lines to make it easier to see how the signal changes.

Let’s say we have a timeseries of three brain regions for five timepoints.

Recall from the previous tutorial that:

• each row represents one brain region,

• each column represents one time point.

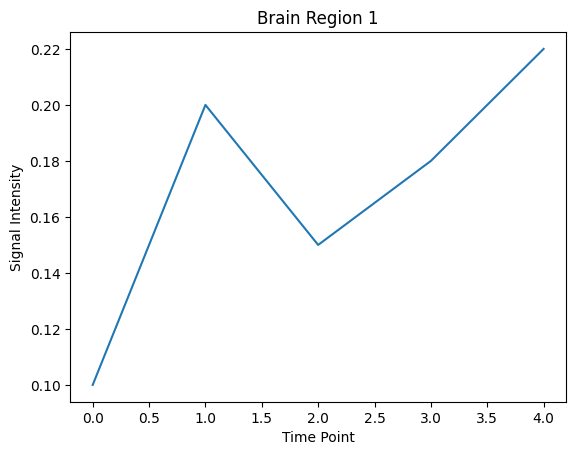

Let’s visualize the first brain region.

Let’s break down the first line:

plt.plot(timeseries[0])

Here,

timeseries[0]

selects the first row of the NumPy array, corresponding to the first brain region.

The values:

[0.10, 0.20, 0.15, 0.18, 0.22]

are plotted on the y-axis.

Since we did not explicitly provide x-values, Matplotlib automatically uses:

0, 1, 2, 3, 4

as the x-axis, representing the time points.

As before, the remaining lines simply add axis labels, a title, and display the completed figure.

Plotting Multiple Brain Regions¶

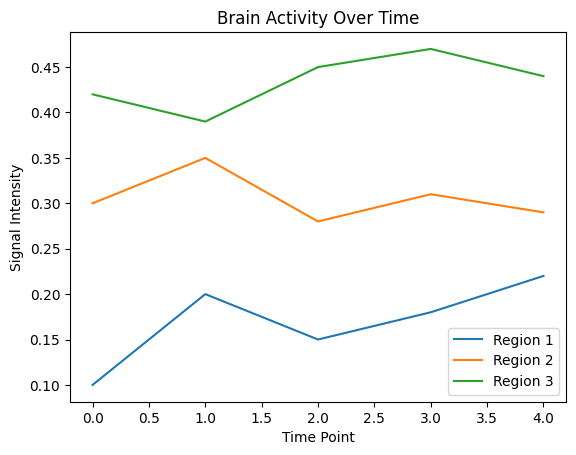

We can also plot multiple brain regions on the same figure.

Each call to plt.plot() adds another line.

The function

plt.legend()

displays a legend showing which line corresponds to each brain region.

Legends become especially useful when plotting multiple lines on the same figure.

Try it yourself¶

• Plot only the second brain region.

• Change the title of the figure.

• Change the axis labels.

• Add a fourth brain region to the timeseries array and plot it.

• Plot all brain regions on the same figure with different labels.

Heatmap¶

So far, we’ve visualized our data using:

• histograms,

• bar plots,

• scatter plots,

• and line plots.

However, sometimes our data naturally form a matrix, where both the rows and columns carry meaningful information.

For example, in our timeseries data:

• each row represents a brain region,

• each column represents a time point.

Instead of plotting each brain region separately, we might want to visualize the entire matrix at once.

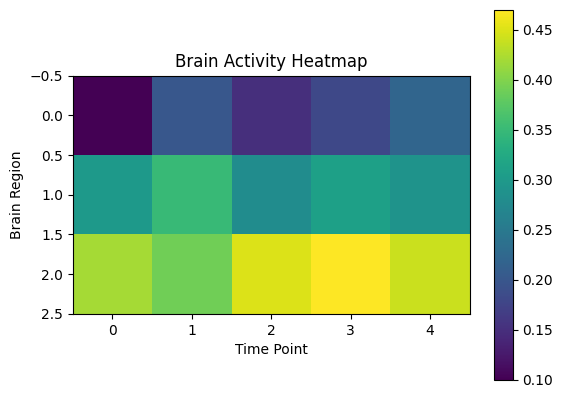

A heatmap does exactly that.

Rather than using the height or position of points, a heatmap represents each value using color.

Let’s break down the first line:

plt.imshow(timeseries)

The function imshow() displays a two-dimensional array as an image.

Each value in the array becomes one colored square.

For our data:

• each row corresponds to a brain region,

• each column corresponds to a time point,

• and the color represents the signal intensity.

The color bar on the right shows how colors correspond to numerical values.

As before:

• plt.xlabel() labels the x-axis,

• plt.ylabel() labels the y-axis,

• plt.title() adds a title,

• plt.colorbar() displays the color scale,

• and plt.show() displays the completed figure.

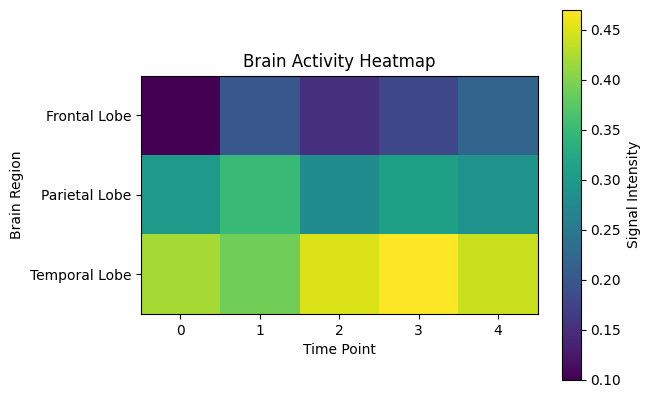

However, let’s try to improve the figure. For instance, what if we can label the three brain regions on the y axis and incorporate it into the figure.

Let’s look at the new lines:

tick_positions = range(len(brain_regions))

plt.yticks(
    ticks=tick_positions,
    labels=brain_regions
)

Furthermore,

• len(brain_regions) returns the number of items in the list.

• range(n) creates a sequence of numbers from 0 to n-1.

E.g., range(3) returns the following sequence: 0, 1, and 2.

In this example:

brain_regions = [
    "Frontal Lobe",
    "Parietal Lobe",
    "Temporal Lobe"
]

there are 3 brain regions.

So:

len(brain_regions)

returns:

3

and therefore:

range(len(brain_regions))

becomes:

range(3)

which corresponds to the positions:

0, 1, 2

These are exactly the row positions used by the heatmap.

By default, Matplotlib labels these rows as:

0
1
2

However, these numbers don’t tell us which brain region each row represents.

The function plt.yticks() allows us to replace these numbers with more meaningful labels.

Here, in plt.yticks(...),

• ticks=tick_positions tells Matplotlib which row positions should receive labels.

• labels=brain_regions tells Matplotlib what text should appear at those positions.

As a result, the rows are labeled:

Frontal Lobe
Parietal Lobe
Temporal Lobe

instead of:

0
1
2

This makes the figure much easier to interpret and is a common way to customize scientific figures.
