neuPrint API Guide (Advanced Level)

In the previous guides, we interacted with neuPrint and explored the connectome through the web interface.

But ... What Really is neuPrint?¶

A connectome is a map of how neurons are connected to one another through synapses, much like a road map shows how different places are linked by roads. As advances in electron microscopy and artificial intelligence made it possible to reconstruct increasingly large connectomes, scientists needed an easy way to explore these vast datasets without downloading millions of connections or writing computer code. neuPrint was developed to meet this need. It is a free, web-based platform that allows researchers to search for neurons, view their shapes, identify their synaptic partners, and investigate how neural circuits are organized using only a web browser. Designed with biologists in mind, neuPrint makes complex connectome data accessible through an intuitive interface, enabling users to answer questions such as “Which neurons connect to this cell?” or “How strong are these connections?” in just a few clicks.

While the neuPrint website is designed for interactive exploration through a web browser, it also provides Application Programming Interfaces (APIs) for users who wish to perform automated or large-scale analyses (which we will be using here!). An API allows a computer program to communicate directly with neuPrint, making it possible to retrieve data, run repeated queries, and integrate connectome information into custom analysis pipelines without manually using the website. The data within neuPrint is stored in a Neo4j graph database, which represents neurons as nodes and synaptic connections as relationships between them. This graph-based structure closely reflects the organization of neural circuits and allows complex connectivity queries to be performed efficiently, even for connectomes containing millions of synapses.

The neuPrint web browser interface is sufficient for many biological questions and exploratory analyses. However, some research questions require custom processing, large-scale analyses, or data manipulation that cannot easily be performed through the web interface alone. In these cases, programming provides greater flexibility and allows researchers to interact with the connectome in more advanced ways.

Both approaches serve different purposes. If a GUI is sufficient for your question, it is often the simplest approach. When greater flexibility, customization, or advanced analyses are required, programming becomes the more suitable option.

For more detailed information on neuPrint’s features, feel free to read the neuPrint User Guide.

What Tools Do I Need to Begin?¶

If you are exploring the connectome programmatically, you will need to install several tools. If you are participating in the GUI track, feel free to refer to the neuPrint GUI Guide and Male CNS Cell Type Explorer.

1. Install Python, a Code Editor, and Set Up Your Virtual Environment¶

You will need: VS Code (code editor), Python, and a virtual environment. See the Programming Guide for more details.

Specifically,

See Installing Python and Exploring Basic Concepts for how to install Python and Visual Studio Code and for a Python crash course.

See Conda, Packages, and Jupyter Notebook for how to manage Python environments, install packages, and write code in Jupyter Notebooks (.ipynb), which are widely used in data science and neuroscience.

2. Install Python Packages into Your Virtual Environment via the Terminal¶

Python packages provide tools needed to interact with and analyze connectome data. Install these packages inside your virtual environment using the terminal:

neuprint-python:
The neuPrint Python package allows you to access and query connectome datasets directly from Python. Instead of manually searching through the neuPrint website, you can write Python code to retrieve neurons, synapses, connectivity, and metadata.

Step 1: Open a terminal¶

A terminal is a program where you can type commands:

• Windows: Open Command Prompt or PowerShell.

• macOS: Open the Terminal application (Applications → Utilities → Terminal).

• Linux: Open your preferred terminal.

Step 2: Install the package¶

Type the following command and press Enter:

pip install neuprint-python

Or, you can also use conda:

conda install -c flyem-forge neuprint-python

This command downloads and installs the neuPrint package along with any required dependencies.

For more details, please refer to the neuPrint documentation.

plotly:
Plotly is a Python library used to create interactive visualizations. Plotly graphs allow you to:

• zoom into specific regions of a plot

• hover over points to see additional information

• select and explore subsets of data

• interactively examine patterns and relationships

These features make Plotly especially useful during the initial exploration of connectome data, where datasets can contain thousands of neurons, connections, and cell types. Interactive plots can help you identify trends, outliers, clusters, and interesting biological patterns before performing more detailed analyses.

For example, Plotly can be used to create:

• scatter plots showing relationships between neuronal properties

• heatmaps showing connectivity patterns between cell types

• bar charts comparing groups of neurons

• network visualizations showing connections between brain regions

Installing Plotly¶

Before using Plotly, install the package using pip. Open your terminal and run:

pip install plotly

Or, if using Conda:

conda install -c conda-forge plotly

Documentation: https://pypi.org/project/plotly-express/

Rendering Plotly Figures in a Browser¶

For interactive Plotly figures, especially large or data-heavy plots, rendering directly in a web browser is faster than rendering the figure inside a Jupyter notebook.

You can set the default Plotly renderer to your browser with:

import plotly.io as pio
pio.renderers.default = "browser"

This causes Plotly figures to open in your default web browser rather than being rendered directly inside the notebook. The browser renderer is therefore a useful option when working with large Plotly visualizations, although the standard notebook renderer is still convenient for smaller and simpler figures.

Create a neuPrint Account¶

Installing neuprint-python is the first step, but before Python can retrieve data from neuPrint, you need a neuPrint account, an authentication token, the URL of the neuPrint server, and the name of the dataset you want to query.

You will need to have a Google account. Using your Google Account, go ahead and log in to neuPrint.

Connecting to a neuPrint Server¶

The next step is to connect to a neuPrint server.

Before Python can retrieve any data from neuPrint, it needs to know where the data is located and whether you have permission to access it.

This is done by creating a Client object.

What is a Client?¶

A Client acts as the connection between your Python program and the neuPrint server. Every time you ask for information such as a neuron, cell type, or synaptic connection, the Client sends your request to the server and returns the results.

Without a Client, Python has no way of knowing:

• which neuPrint server to connect to

• which connectome dataset to use

• whether you are authorized to access the data

Information Required to Create a Client¶

To create a Client, you need three pieces of information:

1. neuPrint server address¶

The server address tells Python where the connectome database is hosted:

https://neuprint.janelia.org

This is the website that stores several publicly available connectome datasets.

2. Dataset¶

A neuPrint server can contain multiple connectome datasets. The dataset name tells Python which connectome you want to query:

male-cns:v1.0

Think of a dataset as a specific version of a connectome. Different datasets may represent different brain regions, species, or releases. The dataset we are using is the male CNS connectome, and v1.0 is the version used in this competition. It is good practice to check whether a newer dataset version is available before starting your analysis, so that you are working with the most up-to-date version.

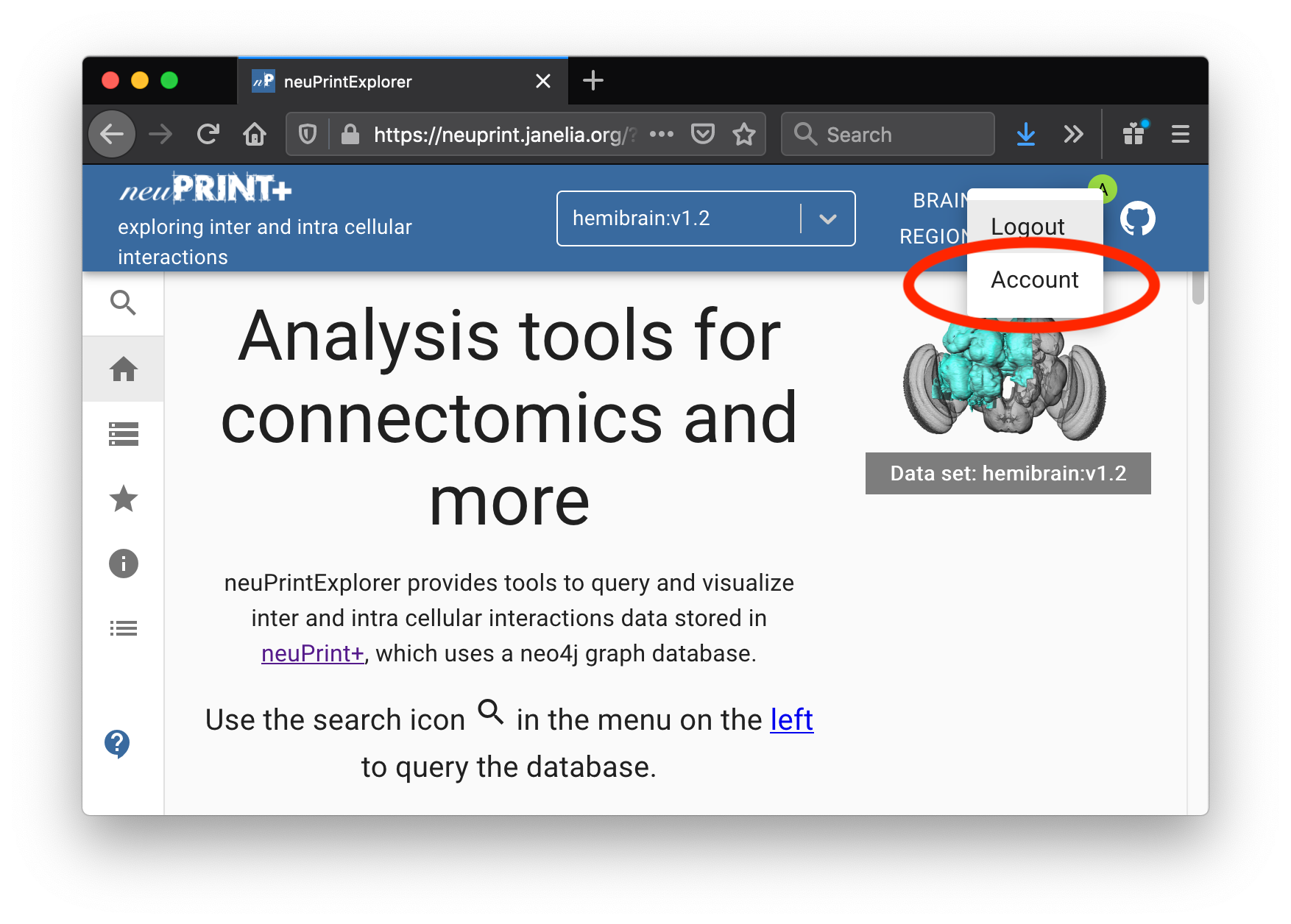

3. Authentication token¶

An authentication token is a unique string of characters linked to your neuPrint account.

When Python connects to the server, it sends this token to prove your identity. This allows the server to verify that you have permission to access the requested data.

You can think of the token as a digital key that unlocks access to the neuPrint server. Instead of entering your username and password every time you run your code, Python uses the token automatically.

Once you have these three pieces of information, you are ready to create your first Client object and begin querying connectome data!

For more details, check out the neuPrint documentation.

New to Programming?¶

If you are new to programming or this seems overwhelming at first, that is completely normal!

Please refer to the Programming Guide for guidance. It is highly encouraged to complete all sections if you are considering participating in the API/computational track.

Take your time, and feel free to ask questions through the Clematis Discord or during office hours! 🪰

Next Steps¶

Now head over to the neuPrint API Tutorial Notebook to get started with querying the connectome in Python!
