Tutorial 6 (Advanced): Linking Brain to Phenotypes (Part 3: Machine Learning)

From association to prediction¶

In Tutorial 5, we asked whether age and functional connectivity (FC) were associated. In this tutorial, we ask a different question:

Can patterns of functional connectivity help us distinguish younger from older adults in participants the model has not seen before?

That last phrase — participants the model has not seen before — is the central idea of this tutorial. A machine-learning model is useful only if it can apply what it learned to new examples, rather than simply remembering the people it trained on.

This is a supervised machine-learning classification problem:

• supervised means that, while training, the model sees examples for which we already know the answer;

• classification means that the answer is a category — here, younger or older — rather than a continuous number.

You do not need previous machine-learning or scikit-learn experience. We will build the workflow one idea at a time and explain what the code is doing.

By the end of the tutorial, you should be able to explain:

• what samples, features, and a target are;

• what it means to fit a model and ask it to predict;

• why we keep training and test participants separate;

• how 5-fold cross-validation works;

• what StandardScaler, a scikit-learn Pipeline, and logistic regression each do;

• why preprocessing can cause data leakage if it is done in the wrong order;

• why class imbalance changes how we evaluate a model;

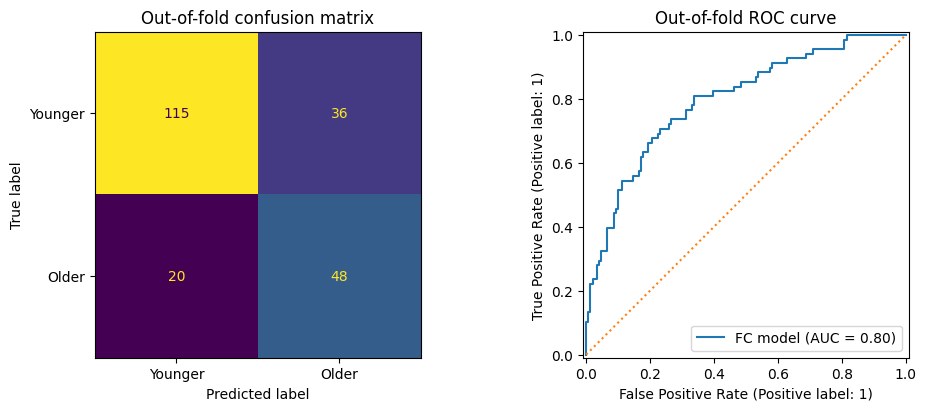

• how to read accuracy, balanced accuracy, a confusion matrix, an ROC curve, and ROC AUC; and

• how to interpret a predictive result without turning it into a causal or clinical claim.

A map of the workflow¶

Before writing code, it helps to see the whole journey. We’ll use an example of trying to use FC features to predict whether someone is young or old. We will repeatedly return to this map:

1. QUESTION
   Can FC distinguish younger from older participants?
          |
          v
2. REPRESENT EACH PARTICIPANT WITH NUMBERS
   28 network-level FC features
          |
          v
3. GIVE THE MODEL EXAMPLES WITH KNOWN ANSWERS
   X = FC features      y = age-group labels
          |
          v
4. LET THE MODEL LEARN FROM TRAINING PARTICIPANTS
   standardize features -> fit logistic regression
          |
          v
5. TEST ON PARTICIPANTS THAT WERE HELD OUT (i.e., new sets of participants that
the model hasn't seen)
   predictions -> evaluation metrics
          |
          v
6. REPEAT WITH CROSS-VALIDATION
   every participant is tested once

Machine learning can feel complicated because many new terms appear at once. Most of them describe one of these six steps.

1. Translate the neuroscience question into machine-learning language¶

A machine-learning program does not understand the phrase “brain connectivity” by itself. We have to tell it what one example looks like and what answer we want it to learn.

Think of a spreadsheet. Each row is one participant. Each column in X is one measurable clue the model can use.

                         FEATURES (X)                         TARGET (y)
Participant      Visual-within   DMN-within   ...          Age group
     1                0.42          0.31      ...          Younger (0)
     2                0.38          0.47      ...          Older   (1)
     3                0.51          0.29      ...          Younger (0)

The target (i.e., age group) has two categories, so this is a classification problem. If we instead asked the model to predict exact age in years, that would be a regression problem. Similar concepts apply to both classification and regression machine learning.

Scikit-learn #1: objects learn when we call .fit()¶

We will use the Python library scikit-learn. A useful logic for you is:

• writing LogisticRegression() creates a model recipe;

• calling .fit(X_train, y_train) lets that model learn from training examples;

• calling .predict(X_test) asks the fitted model for class predictions on new examples;

• calling .predict_proba(X_test) asks for estimated probabilities instead of only class labels.

The same pattern appears throughout scikit-learn. Preprocessing tools also have a .fit() step because some preprocessing operations learn information from the data.

The import cell contains many names, but you do not need to memorize them. We will introduce each important one when it first appears.

PROJECT_DIR tells Python where the project lives. The next cell then builds the expected file paths and loads the outputs created in earlier tutorials.

2. Audit the data before modelling¶

Machine-learning code can run even when the rows are paired incorrectly. That is dangerous: participant 1’s FC matrix must be matched with participant 1’s metadata and age label.

An assert statement is a safety check. If its condition is false, Python stops instead of silently continuing with misaligned data.

One participant has no age-group label, so that participant cannot be used for this supervised-learning task. We will exclude that row when we construct X and y.

The sex proportions also differ between age groups. That matters for interpretation. If sex is related to FC, then some of the pattern used by the classifier could reflect sex differences that happen to line up with the age groups. This is a possible confound, and we return to it later.

The lesson is simple: machine learning does not make data-quality problems disappear. It can learn any systematic pattern that helps prediction, including patterns we did not intend it to use.

3. Turn each connectome into a manageable set of features¶

Each participant has a 100 x 100 symmetric FC matrix. Because the matrix is symmetric, the connection from region A to region B is the same as the connection from B to A. Ignoring the diagonal, the number of unique edges is

We could give all 4,950 edges to a model. But we have only 219 participants with age labels. That means there would be far more features than participants. Such models are possible, especially with careful regularization, but they are easier to overfit and harder to explain in an introductory tutorial.

For this analysis, we therefore compress each connectome into 28 interpretable network-level features:

• 7 mean within-network FC values; and

• 21 mean between-network FC values, one for each pair among 7 networks.

So instead of describing one participant with 4,950 edge values, we describe that participant with 28 network summaries.

Fisher transformation happens within one participant¶

Before averaging correlation coefficients, we apply the Fisher z transformation introduced earlier. This transformation acts on each correlation value in one participant’s FC matrix. It does not look across participants and it does not use age labels.

For example, a participant’s “DMN-FPN” feature is created by Fisher-transforming the relevant correlations in that participant’s matrix and then averaging those transformed values.

The table above is now in the shape machine-learning libraries expect: rows are participants and columns are features.

Next we create the two objects used by nearly every supervised scikit-learn model:

• X: the feature matrix;

• y: the target labels.

In this tutorial, 0 means younger and 1 means older. The numbers are only computer-friendly labels; they do not imply that one group is more important than the other.

Pause and predict¶

Before fitting anything, answer these questions in words:

1. There are 151 younger and 68 older participants. If a program predicts “younger” for everybody, what ordinary accuracy would it obtain?

2. Would that program have learned anything from FC?

3. If we want to know whether a model can help with new participants, should we judge it on people it learned from or people it did not learn from?

Keep those answers in mind. They motivate almost every design choice below.

4. How logistic regression turns features into a prediction¶

We will use logistic regression as our first classifier. The name is confusing: despite the word regression, logistic regression is commonly used to predict one of two classes.

First, an everyday analogy¶

Imagine a simple weather app deciding whether tomorrow is likely to be rainy. It might use clues such as cloud cover, humidity, and air pressure. It does not need a rule like:

“If humidity is above exactly 73%, predict rain.”

Instead, each clue can contribute some amount of evidence. Cloud cover might push the prediction toward rain, while high pressure might push it away from rain. The app combines those contributions into one overall score.

Logistic regression does the same thing. In our case:

• the 28 FC features are the clues;

• the model learns a weight, also called a coefficient, for each clue;

• the weighted clues are added together to make one score;

• that score is converted into a probability between 0 and 1.

Step 1: make a weighted score¶

For 28 features, the model computes

You can read this equation as:

starting value + contribution from feature 1 + contribution from feature 2 + ...

Here, x values are one participant’s features and the b values are weights learned from the training data.

A positive contribution pushes the score toward class 1 (older). A negative contribution pushes it toward class 0 (younger).

An example using 2 FC features¶

Pretend for a moment that we have only two standardized FC features. Suppose a fitted model learned

For a participant with $x_1=1$ and $x_2=-1$,

The first feature contributes evidence toward the older class. Because the second feature is below average and has a negative weight, it also pushes the score upward in this example. Real models use all 28 features at once.

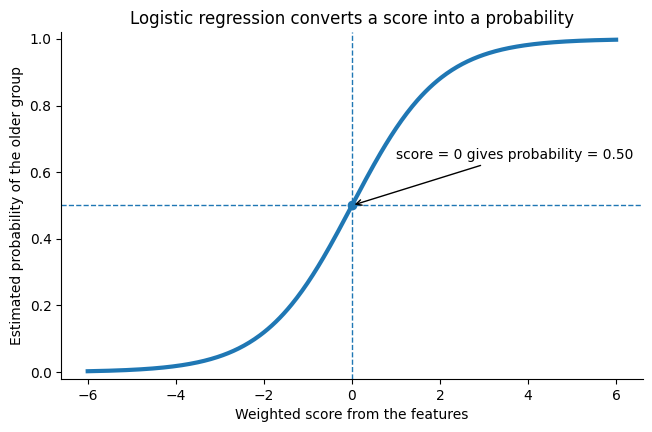

Step 2: turn the score into a probability¶

The raw score can be any number from negative to positive infinity. Logistic regression passes it through the sigmoid function:

You do not need to calculate this by hand. The important idea is what the function does:

So very negative scores become probabilities near 0, a score of 0 becomes 0.50, and very positive scores become probabilities near 1.

With the usual 0.50 decision threshold:

• probability >= 0.50 -> predict older;

• probability < 0.50 -> predict younger.

The model is not given a neuroscientific rule such as “low DMN connectivity means older.” During .fit(), it learns the combination of weights that best separates the labelled training examples.

Why start with logistic regression?¶

Logistic regression is a useful starting model, not automatically the best possible model.

It fits this tutorial well because our target has two classes, our features are numerical, and the model gives us both probabilities and interpretable coefficient directions. It is also relatively simple compared with highly flexible nonlinear algorithms, which is useful when the sample is modest.

One assumption is that the log-odds of the older class change linearly with the features. You do not need to work with log-odds directly here. The practical consequence is that logistic regression builds its decision from a weighted sum rather than learning arbitrary curves and interactions.

More complex models can be explored later, but they must be evaluated with the same care.

5. Before fitting the model: put features on comparable scales¶

The 28 features are all FC summaries, but they can still have different means and different amounts of variation. This matters because we will use L2 regularization, which penalizes coefficient size. It is easier to compare and regularize coefficients when one unit has a similar meaning across features. [For now, no need to understand what regularization does.]

To address the issue of each feature having different means and standard deviation, we therefore use scikit-learn’s StandardScaler.

What does StandardScaler do?¶

A scaler is a preprocessing tool that changes the numerical scale of features before they are given to a machine-learning model.

For example, imagine two features:

• Feature A ranges from 0.2 to 0.8

• Feature B ranges from 20 to 200

Their numbers are on very different scales. A scaler transforms them so they are represented more comparably.

StandardScaler is one particular type of scaler.

For each feature, it calculates the mean and standard deviation from the training participants, then transforms the values so that the training data have approximately:

• mean = 0

• standard deviation = 1

So, in other words, for each feature separately, the scaler calculates two numbers from the training participants:

1. the feature’s mean;

2. the feature’s standard deviation (SD), which describes its spread.

It then transforms a value using

In words:

subtract the training mean, then divide by the training SD.

Suppose the training participants have a mean DMN-within FC of 0.40 and an SD of 0.10.

• FC = 0.40 becomes 0: exactly at the training mean.

• FC = 0.50 becomes +1: one training SD above the mean.

• FC = 0.60 becomes +2: two training SDs above the mean.

• FC = 0.30 becomes -1: one training SD below the mean.

Standardization does not mean that every participant becomes the same. It simply expresses each feature in units of its training-set spread.

fit, transform, and fit_transform¶

Here,

scaler = StandardScaler()

creates an empty scaler. It has not calculated any means or SDs yet.

scaler.fit(X_train)

calculates the means and SDs from X_train.

X_train_scaled = scaler.transform(X_train)
X_test_scaled = scaler.transform(X_test)

uses those already-learned training values to transform both sets.

fit_transform(X_train) is simply a convenient way to fit on the training data and transform the training data in one step.

Fisher z transformation and standardization are different¶

The word z appears in both contexts, which can be confusing.

Creating the 28 FC summaries before cross-validation is safe because each participant’s summary uses only that participant’s FC matrix plus the predefined atlas. Standardization is different because the mean and SD are calculated across people.

6. A scikit-learn pipeline: make preprocessing part of the model¶

We want every prediction to follow the same recipe:

raw 28 FC features
        |
        v
StandardScaler
        |
        v
logistic regression
        |
        v
probability / predicted class

scikit-learn calls this chain a pipeline.

A pipeline is useful because we can treat the whole sequence like one model. If we later write

model.fit(X_train, y_train)

scikit-learn will fit the scaler on X_train, transform X_train, and then fit logistic regression on the scaled training features.

If we then write

model.predict(X_test)

scikit-learn will use the already-fitted training scaler to transform X_test, then pass the transformed values to the fitted classifier. It does not relearn the scaler from the test participants.

If Jupyter displays something like

Pipeline(steps=[('standardscaler', StandardScaler()),
                ('logisticregression', LogisticRegression(...))])

that is only the recipe. No coefficients have been learned yet because we have not called .fit().

This distinction is important for reading machine-learning code:

• creating/configuring an object is not training;

• .fit(...) is the step where information is learned from data.

7. Training, testing, and overfitting¶

Imagine revising for an exam using a set of practice questions. If someone asks how well you learned the material, scoring yourself on those exact same practice questions is not a strong test. You may remember details of those questions without being able to solve new ones.

A machine-learning model can have the same problem.

Training participants¶

These participants are like the practice set. Their FC features and age-group labels are available to the model during fitting. Logistic regression adjusts its coefficients using these examples.

Test participants¶

These participants are like unseen exam questions. Their features are given to the already-fitted model, but they were not used to learn the coefficients. Their true labels are revealed only for evaluation.

If a model performs very well on training participants but poorly on new participants, it has overfit: it learned patterns that were useful for reproducing the training sample but did not generalize well.

The important scientific quantity is therefore not “How well can the model describe the people it learned from?” but:

How well does it predict people that did not participate in fitting?

Why use cross-validation instead of one train/test split?¶

With only 219 labelled participants, one split can be unlucky. Perhaps the test set happens to contain unusually easy or difficult cases.

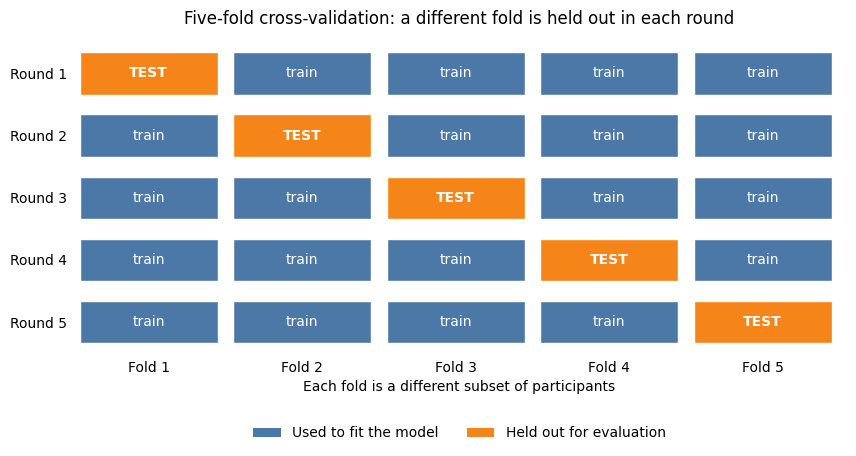

In 5-fold cross-validation, we divide the data into five groups, called folds, and repeat the train/test process five times:

1. test on Fold 1, train on Folds 2-5;

2. test on Fold 2, train on the other four folds;

3. continue until each fold has been the test fold once.

This fits five separate models. Within any one round, a participant is either training or test — never both.

We use stratified folds, meaning that each fold keeps approximately the same younger/older proportion as the full dataset.

We now tell scikit-learn how to make those folds. StratifiedKFold is not a model. It is a splitting plan.

shuffle=True mixes the participant order before making folds, and random_state=42 makes that shuffle reproducible. The number 42 has no scientific meaning; using a fixed value simply means another person running the notebook gets the same partition.

8. Data leakage: why the order of operations matters¶

Now that we know what StandardScaler.fit() learns, data leakage becomes easier to see.

Data leakage happens when information from participants who are supposed to be held out influences the training process.

A useful analogy is an exam. Imagine saying that a group of questions will be kept secret for the final test, but then using statistics from those secret questions to decide how to prepare the class. Even if you never reveal the answers, the final test has influenced the preparation. It is no longer completely unseen.

A concrete scaling example¶

Suppose one training round contains three training participants with DMN-within FC values

0.30, 0.40, 0.50

Their mean is 0.40.

Now imagine that the held-out test participant has a much higher value, 0.90. If we calculate the mean using everybody, the mean becomes

Notice what happened: the test participant changed how the training participants would be standardized. We did not use the test participant’s age label, but information from that supposedly unseen participant still entered model preparation.

That is leakage.

The safe rule¶

Within each cross-validation round:

TRAINING FOLDS                              HELD-OUT FOLD
      |                                          |
      |-- fit scaler: learn training mean + SD   |
      |-- transform training features            |-- transform using TRAINING mean + SD
      |-- fit logistic regression                |-- predict; do not refit anything

The test fold may be transformed using quantities learned from training data. It must not be used to fit those quantities.

Building a correct pipeline¶

This pattern is wrong:

# ❌ Incorrect: standardize before cross-validation

X_scaled = StandardScaler().fit_transform(X)  # learns from EVERY participant

cross_validate(model, X_scaled, y, cv=cv) # performs cross-validation using the X_scaled already standardized using the ENTIRE dataset.

Here, the first line, StandardScaler(), creates the scaler.

.fit_transform(X) then does two things to the entire dataset X:

1. fit — calculate the mean and standard deviation of each feature using all 219 participants;

2. transform — use those means and standard deviations to standardize every participant.

The standardized data are saved as X_scaled.

The problem is that this happens before participants have been divided into training and held-out folds. Therefore, even participants who will later be held out have already contributed to the means and standard deviations.

Then for the second line (cross_validate), each round divides participants into training and held-out folds, fits model on the training folds, and evaluates it on the held-out fold. BUT the split happened too late: X_scaled was created using information from everybody.

Now, compare with the correct method:

# ✅ Correct: make scaling part of the model pipeline
model = make_pipeline(StandardScaler(), LogisticRegression())
cross_validate(model, X, y, cv=cv)

Here, make_pipeline() joins the two steps into one sequence:

features → StandardScaler → LogisticRegression → prediction

Importantly, nothing is fitted yet. The first line make_pipeline(... , ...) only says what should happen whenever the model is fitted.

Then after defining the pipeline, the cross_validate (second line) receives the original, unscaled X. In each cross-validation round, it:

1. Splits participants
             ↓
     TRAINING     HELD-OUT
         ↓
2. Fit StandardScaler
   using TRAINING only
         ↓
3. Scale training data
         ↓
4. Fit LogisticRegression
   using training data
         ↓
5. Scale held-out data using
   the SAME training mean and SD
         ↓
6. Make predictions for held-out participants

So the important difference is when scaling happens:

❌ Incorrect
scale EVERYONE → split into folds → train → test

✅ Correct
split into folds → fit scaler on TRAINING → train → test

Also, another important note: fit does not always mean “train a classifier.” It means use some data to determine the object’s parameters. For StandardScaler, fitting means calculating the mean and standard deviation. For LogisticRegression, fitting means estimating the coefficients used for classification.

9. Three more concepts to consider before evaluation¶

Regularization: discourage extreme coefficients¶

With 28 features and a modest sample, some accidental training-set patterns may look useful. A model can chase those patterns by giving very large positive or negative weights to certain features.

Regularization acts like a restraint on the coefficients. The model is still allowed to use strong weights when the training data support them, but large weights come with a cost.

We use L2 regularization, which adds a penalty based on squared coefficient sizes:

You do not need to calculate this. The intuition is:

fit the training data well, but avoid unnecessarily extreme weights.

In scikit-learn, C controls the inverse of regularization strength, so its direction can feel backwards:

• smaller C -> stronger shrinkage;

• larger C -> weaker shrinkage.

We fix C=1.0 before looking at test performance. If we tried many values and kept whichever looked best on the same held-out folds, those folds would no longer be a clean evaluation set. Note that we can systematically tune these parameters such as C. Tuning is discussed later under nested cross-validation.

Balanced class weights: give both groups influence during fitting¶

Our sample contains 151 younger and 68 older participants. If every error counted equally, the larger younger group would contribute more total errors simply because it contains more people.

class_weight="balanced" increases the weight of examples from the smaller class so that the two classes have approximately equal total influence on the fitting objective.

It does not create synthetic participants, duplicate rows, or make the dataset physically balanced.

A dummy baseline: how well can we do without FC?¶

A model score needs context. Our DummyClassifier(strategy="most_frequent") ignores the 28 FC features and always predicts the most common class: younger.

That sounds useless — and scientifically it is — but it reaches

ordinary accuracy simply because 69% of the sample is younger.

A real FC model should therefore be compared with this simple baseline rather than with accuracy = 0 alone.

10. Evaluation metrics: moving beyond “How many were correct?”¶

No single metric tells the whole story, especially when the classes are unequal.

Accuracy¶

Accuracy is the fraction of all participants classified correctly.

Let’s say the model simply always guess that this participant is younger. This “always-younger” baseline would get about 0.69 accuracy because 69% (151 out of 219) of the participants are younger.

So the always-younger baseline gets about 0.69 accuracy, even though it never identifies an older participant correctly.

Recall for each group¶

Younger recall asks:

Of the participants who are actually younger, what fraction did we label younger?

Older recall asks the same question for older participants.

For the always-younger baseline:

• younger recall = 151/151 = 1.00;

• older recall = 0/68 = 0.00.

Balanced accuracy¶

Balanced accuracy gives the two groups equal importance by averaging their recalls:

That makes the weakness of the dummy baseline obvious. We therefore use balanced accuracy as the primary metric.

ROC AUC¶

ROC AUC asks a different question. Instead of judging only the class labels created at threshold 0.50, it asks whether the model tends to give higher scores to older participants than to younger participants across all possible thresholds.

We will unpack the ROC curve visually after generating out-of-fold probabilities. For now, remember:

• ROC AUC = 0.50 means chance-level ranking;

• ROC AUC = 1.00 means perfect ranking;

• ROC AUC is not the same thing as accuracy.

What will cross_validate do?¶

This function automates the repeated fitting shown in the cross-validation diagram. In each of the five rounds, scikit-learn will:

1. create a fresh copy of the pipeline;

2. fit StandardScaler on four training folds;

3. transform those training features;

4. fit logistic regression on the transformed training data and training labels;

5. transform the held-out fold using the training scaler;

6. score predictions on the held-out fold.

The code below requests three held-out metrics. We also request training scores only as a diagnostic for overfitting; held-out scores are the estimate of generalization.

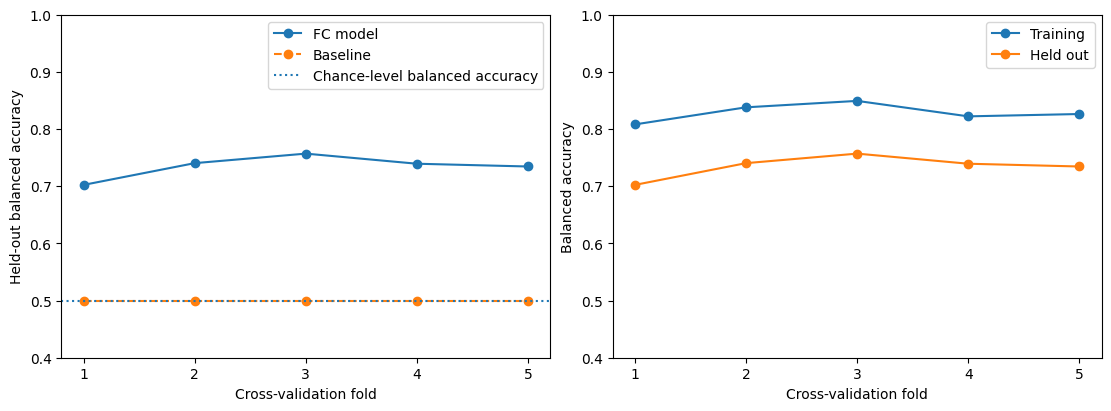

Reading the cross-validation results¶

In the original run of this notebook, the FC model’s mean held-out balanced accuracy was approximately 0.735, compared with 0.500 for the always-younger baseline. Ordinary accuracy was approximately 0.744 for the FC model, while the baseline already achieved about 0.690.

Your exact values should match if you use the same data, preprocessing, and fold split.

The fold-to-fold standard deviation tells us that performance changes depending on which people happen to be held out. It is a description of variability across these five folds; it is not a confidence interval, and the folds are not fully independent because their training sets overlap.

The second plot compares training and held-out balanced accuracy. If training performance is noticeably higher, that train-test gap is evidence that the model fits the training participants better than it generalizes to held-out participants. That is a sign of some overfitting.

Regularization and our 28-feature representation reduce overfitting risk, but they cannot guarantee that overfitting disappears.

11. One held-out prediction for every participant¶

The fold-level table tells us how each round performed. We may also want one prediction for every participant so that we can inspect the kinds of mistakes the model made.

cross_val_predict repeats the same train/test rotation but stores each person’s prediction from the round in which that person was held out:

person in Fold 1 -> prediction from model trained on Folds 2-5
person in Fold 2 -> prediction from model trained on Folds 1, 3, 4, 5
...

These are called out-of-fold predictions. Every prediction comes from a model that did not train on that participant.

We ask for method="predict_proba" because we want the model’s estimated probability for each class. The output has two columns:

• column 0: probability of younger;

• column 1: probability of older.

[:, 1] selects the older-class probability.

12. How to read the confusion matrix and ROC curve¶

Confusion matrix: one threshold, four possible outcomes¶

The confusion matrix uses the 0.50 threshold and counts what happened.

Read it by rows first: the row is the participant’s true group, and the column is the model’s predicted group.

The two off-diagonal boxes are mistakes. Looking at them separately matters because a model can have similar overall accuracy while making very different kinds of errors.

What does ROC AUC mean?¶

If you recall, our ML model will give out a probability score from 0 to 1, with higher score meaning that participant’s FC is more likely to belong to an older person.

Suppose we randomly pick two people:

• one older participant

• one younger participant

We then hide their true ages and look only at the model’s scores.

If the model gives the older participant the higher score, it has ranked that pair correctly.

For example:

                    Model's "older" score

Older participant          0.82
Younger participant        0.31

                    ✓ Correct ranking

But:

                    Model's "older" score

Older participant          0.44
Younger participant        0.71

                    ✗ Incorrect ranking

Now imagine doing this for every possible older–younger pair in the dataset.

An ROC AUC of 0.80 means that, if you randomly select one older and one younger participant, there is about an 80% chance that the model assigns the older participant the higher score.

This is different from accuracy because we never had to choose a classification threshold such as 0.50. We only asked whether the older person received a higher score.

That is why this statement is important:

AUC = 0.80 does not mean that 80% of participants were classified correctly.

Accuracy asks:

“After choosing a threshold, how often did the model give the correct class?”

ROC AUC instead asks:

“Across possible thresholds, how well does the model generally rank older participants above younger participants?”

What’s the point of AUC?¶

The point of AUC is that a classifier usually produces a score or probability, and turning that score into “older” or “younger” requires choosing a threshold. Accuracy tells you how well the model performs at one particular threshold. AUC instead tells you whether the model has learned a useful signal for separating the two groups across possible thresholds.

In other words, ROC AUC tells us how well the FC-based model can distinguish older from younger participants, without tying our evaluation to one particular classification threshold.

And the rough conceptual anchors are:

• AUC = 0.50: the model’s ranking is no better than chance.

• AUC > 0.50: older participants tend to receive higher “older” scores than younger participants.

• AUC = 1.00: every older participant receives a higher score than every younger participant.

So in our case of AUC = 0.8, if we randomly choose one older and one younger participant, the model will assign the older participant a higher “older” score about 80% of the time.

13. Is the observed performance better than chance label assignments?¶

Cross-validation tells us how well the model predicts held-out participants. A permutation test asks a different question:

Would we see a score this high if the age labels had no real relationship with the FC features?

The idea is like repeatedly shuffling name cards:

1. keep each participant’s 28 FC features exactly as they are;

2. randomly shuffle the age-group labels among participants;

3. rerun the full cross-validation procedure;

4. record the balanced accuracy;

5. repeat many times.

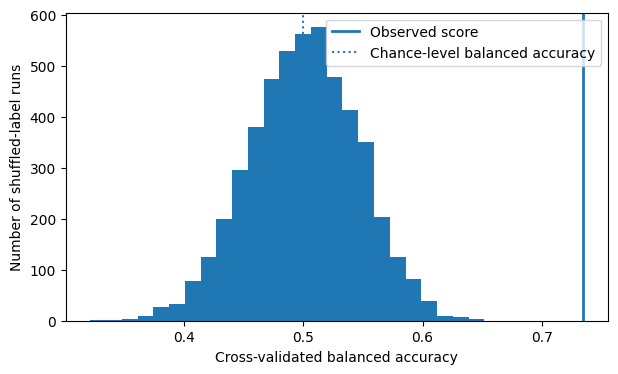

The shuffled runs create a reference distribution for what our evaluation procedure produces when the labels are deliberately disconnected from the FC data.

Our null hypothesis is:

Network-level FC contains no more age-group information than expected under randomly reassigned age labels with this analysis procedure.

Here, let’s use 5000 permutations.

A small permutation p-value means that almost none of the shuffled-label runs reached a balanced accuracy as high as the observed one. That supports the claim that the observed predictive relationship is difficult to explain by random label assignment under this procedure.

It does not show that ageing causes the FC patterns, that the model would work clinically, or that it will generalize to a different dataset, scanner, site, or population.

14. Which FC features influenced the classifier?¶

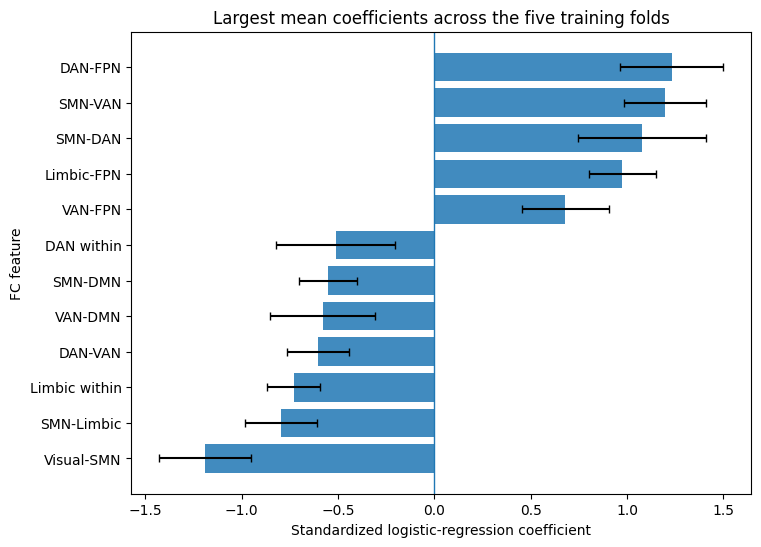

Logistic regression gives one coefficient to each standardized feature.

Because the inputs are standardized, a one-unit increase means one training-set standard deviation for that feature.

Holding the other features fixed:

• a positive coefficient means higher values of that feature push the model toward a higher probability of the older class;

• a negative coefficient means higher values push toward the younger class;

• a coefficient farther from zero changes the weighted score more strongly per standardized unit.

But remember that cross-validation fits five different models. There is not one single coefficient vector during evaluation. We therefore collect the coefficients from each training fold and look at their average and variability.

What can we learn from the coefficients?¶

Remember, here, our prediction goals are simply that whether patterns of FC distinguish younger from older participants.

This is different than our previous tutorials, where we were trying to answer questions like “Which FC measures differ between the age groups?” or “How strongly is an FC measure associated with age?”

So, in thist tutorial, the coefficients simply show which FC features the model uses, and in which direction, when distinguishing younger from older participants. Because we coded older participants as 1, positive coefficients mean that higher values of that FC feature push the model toward an older prediction, whereas negative coefficients mean that higher values push the model toward a younger prediction.

For example, DAN–FPN connectivity has a relatively large positive coefficient, while Visual–SMN connectivity has a relatively large negative coefficient. These features therefore appear to contribute strongly to the model’s predictions in opposite directions.

This makes them interesting candidates for further investigation, but a large coefficient does not by itself show that a connection is biologically important for aging or that aging caused the difference. This is where we may need to do other analyses and also contextualize these findings within the literature to better understand what these results mean.

Interpret coefficients carefully¶

Several cautions matter:

• FC features can be correlated with one another, so a coefficient can change when other features are present.

• L2 regularization intentionally shrinks coefficients.

• The error bars above show variation across fitted folds; they are not confidence intervals or hypothesis tests.

• A stable coefficient direction does not establish causality.

• Because sex composition differs across the age groups, some learned signal could reflect sex-related FC variation.

15. Think like a neuroscientist¶

Before writing a Discussion, ask what the model actually had the opportunity to learn.

1. What is being predicted? Two age cohorts, not exact age and not a continuous lifespan trajectory.

2. What biological information is retained? Mean FC within and between seven canonical networks.

3. What information is discarded? Individual edges, spatial variation within a network, time-varying connectivity, and non-FC measures.

4. Could the model use a shortcut? Group differences in sex composition, motion, data quality, or other variables could contribute to prediction.

5. Where should the result generalize? At most, to participants similar to this sample and processed in a similar way until independent external validation is performed.

6. What does above-chance prediction mean? The chosen FC representation contains information associated with the sampled age-group distinction that can be used for held-out classification under this evaluation procedure.

7. What does it not mean? It does not show that the FC differences cause ageing, that they change within individuals over time, or that the model is ready for clinical use.

16. Reporting the analysis¶

A concise Methods description could read:

For each participant, Pearson-correlation FC matrices were Fisher z-transformed and summarized as seven within-network and 21 between-network mean-connectivity features. One participant without an age-group label was excluded. A scikit-learn pipeline standardized features within each training fold and fitted an L2-regularized logistic-regression classifier with balanced class weights. Performance was evaluated using five-fold stratified cross-validation with a fixed fold random seed. Evaluation metrics were balanced accuracy and ROC AUC. Performance was compared with a most-common-class baseline and assessed with a 5000-permutation label test.

A reproducible report should state participant counts, exclusions, feature construction, model settings, cross-validation strategy, random seed, evaluation metrics, baseline, permutation count, and permutation p-value.

Remember to report the results of all the folds. That would select the most favourable test subset after seeing the results.

17. Extend the analysis¶

Choose an extension because it answers a scientific question, not simply because another algorithm exists.

Starting point¶

1. Remove class_weight="balanced". Compare younger and older recall in the confusion matrix.

2. Replace the age-group target with a continuous phenotype such as Hamilton_Scale. This becomes a regression problem: handle missing targets, use a regression model such as Ridge, and evaluate held-out error rather than classification accuracy.

Intermediate¶

3. Choose an appropriate ML technique where we can take all 4,950 unique edges as features. Look at the literature what ML techniques do people normally use for FC. See https://nilearn.github.io/stable/auto_examples/07_advanced/plot_age_group_prediction_cross_val.html

4. Ask whether FC adds predictive information beyond sex/demographics by comparing a demographic-only model with FC-only model and FC-plus-demographic model using the same outer folds.

Advanced¶

5. Tune C using nested cross-validation. The inner loop chooses the hyperparameter using only the outer training data; the outer held-out fold remains untouched for evaluation. Seek help from the internet on how to run nested CV.

6. Compare logistic regression with another classifier using identical outer folds and a pre-specified comparison plan.

7. Use graph theories measures as features to predict a phenotype! Look at the literature for inspiration.

Tutorial summary¶

The main outcome of this tutorial is understanding how ML can be appropriately applied to answer questions about neuroscience.

1. Operationalize the question in ML terms: each participant becomes one sample, the 28 FC summaries become features, and age group becomes the target.

2. Understand the model: logistic regression gives each feature a learned weight, adds the contributions into a score, and converts that score into a probability.

3. Understand preprocessing: StandardScaler calculates a mean and SD from training participants and expresses feature values in training-set SD units.

4. Keep learning separate from evaluation: held-out participants must not influence model fitting or learned preprocessing.

5. Use pipelines: the scaler and classifier stay together so cross-validation fits preprocessing only on the training folds.

6. Use cross-validation: five rounds allow every participant to receive one prediction from a model that did not train on that participant.

7. Evaluate class imbalance carefully: ordinary accuracy can look high even for a useless majority-class predictor, so balanced accuracy is more informative here.

8. Read probabilities as well as class labels: the confusion matrix evaluates one threshold; the ROC curve examines the trade-off across thresholds, and AUC summarizes ranking.

9. Compare against simple alternatives: a dummy baseline and permutation test help put model performance in context.

10. Interpret cautiously: prediction is not always equivalent to establishing causality, biological mechanism, clinical usefulness, or generalization to new populations.

Short glossary¶
